Grundig Digital Instrument Cluster for Tesla Model 3 & Model Y – 9.66" CarPlay
Couldn't load pickup availability
Specification
- SKU Digital Instrument Cluster/2017-2020 Model3/LHD/Yes
Need Help?
If you need any help, please don't hesitate to contact us at
service@grundig-auto.com
I. Product Overview
A Model 3 or Model Y has no screen in front of the driver. Speed, range, and the car's own warnings all live on the center display, so every glance costs you a look away from the road. The Grundig Digital Instrument Cluster puts a 9.66-inch display behind the steering wheel and keeps that information where your eyes already are.
It connects to the factory plug, so nothing is cut, spliced, or permanently changed on the car. Wireless CarPlay and Android Auto mirror onto the same screen, and the cluster runs on a Linux-based automotive system that updates over the air.
II. Key Features

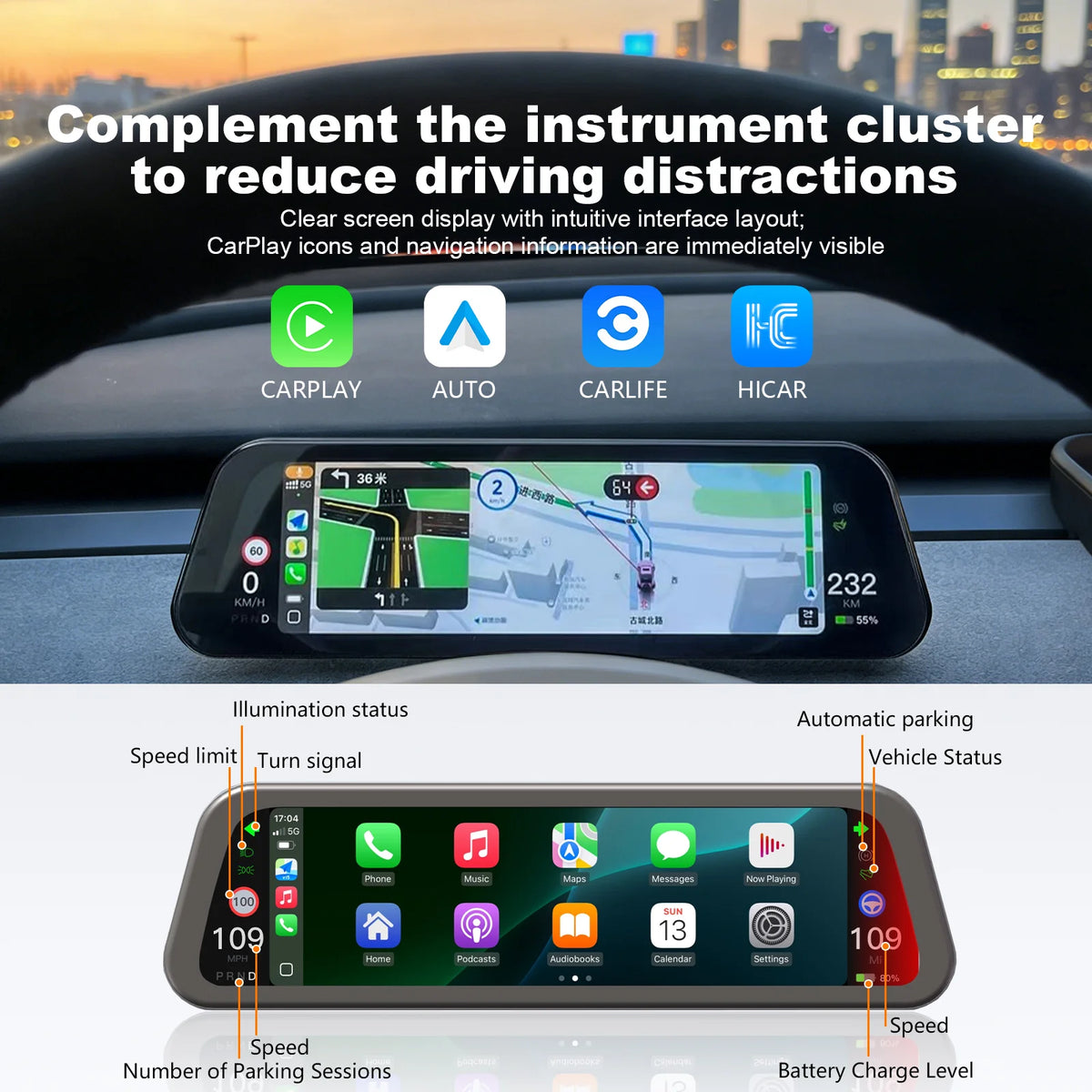

Speed, Battery, and Tire Pressure Up Front. The cluster shows speed, battery level, tire pressure, temperature, turn signals, and seatbelt status right behind the steering wheel.
Wireless CarPlay and Android Auto. Full-screen mirroring puts navigation, music, and calls on the cluster, and the touch layer answers in under 0.2 seconds — even with gloves on.

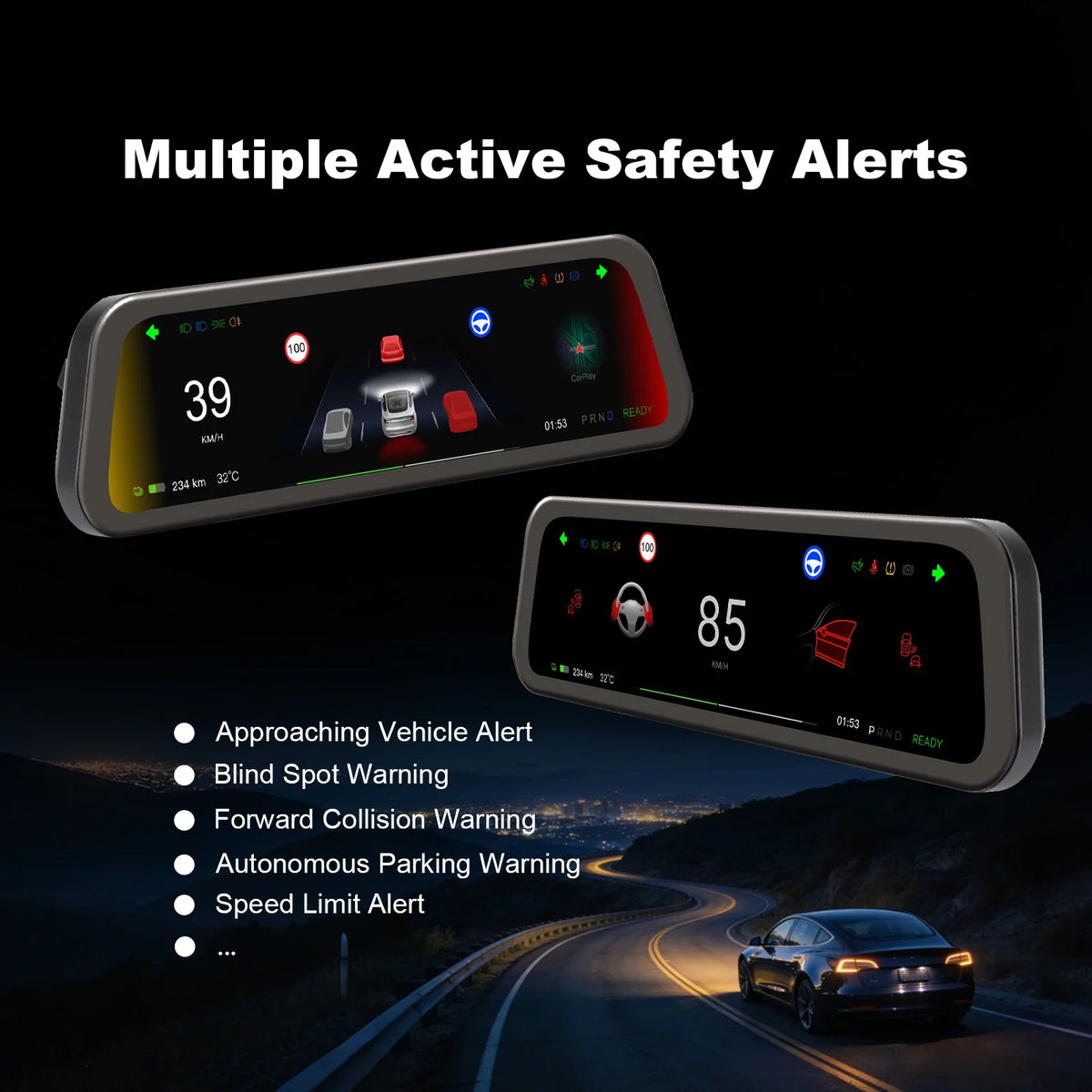

Mirrors Your Car's Own Alerts. Blind spot, lane departure, forward collision, parking, and speed limit warnings, plus the current Autopilot status, appear on the cluster as the car sends them.

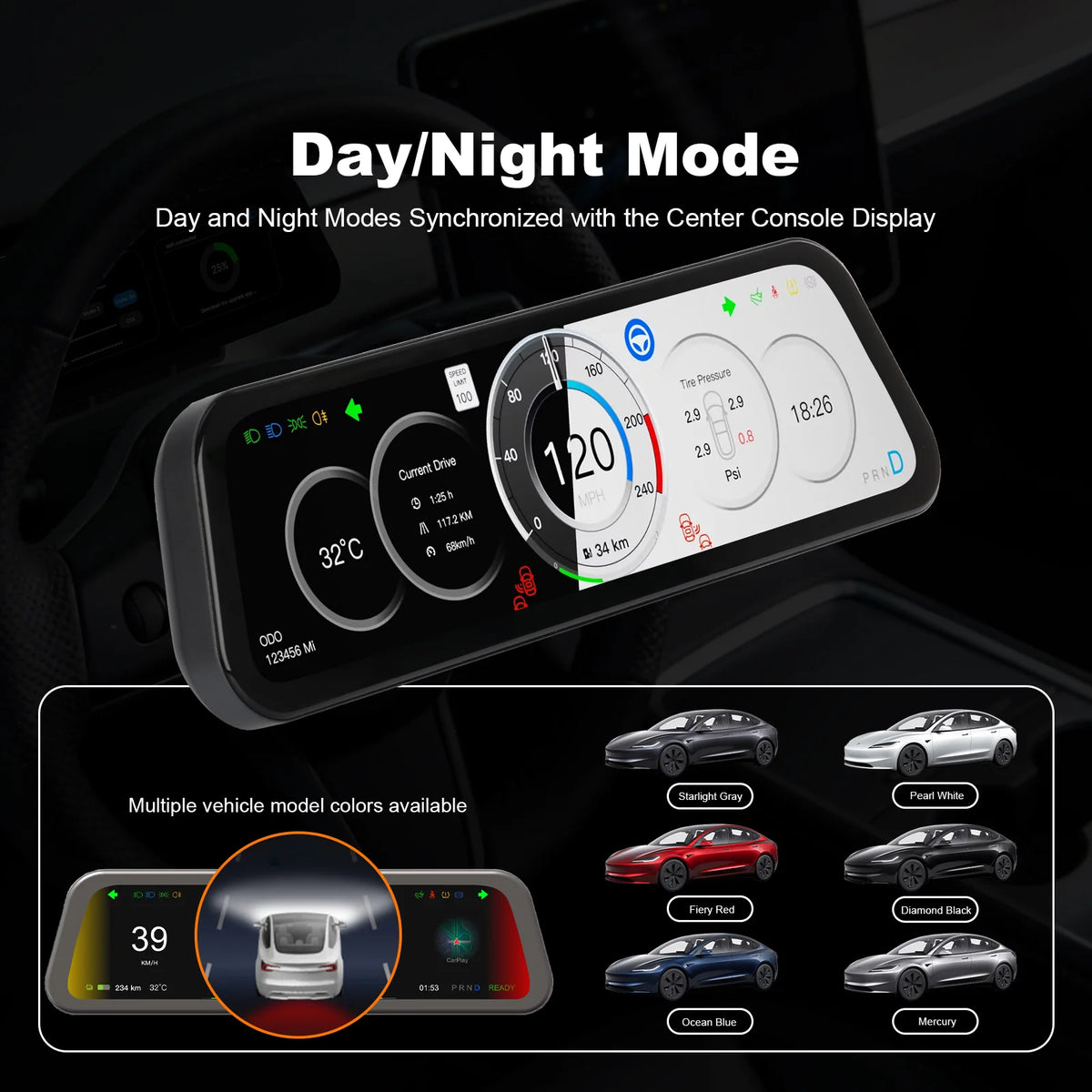

Sharp in Sunlight, Dim at Night. The laminated IPS panel runs at 1920 × 720 with an anti-glare coating and up to 3000 nits, and dims itself with your center screen at night.

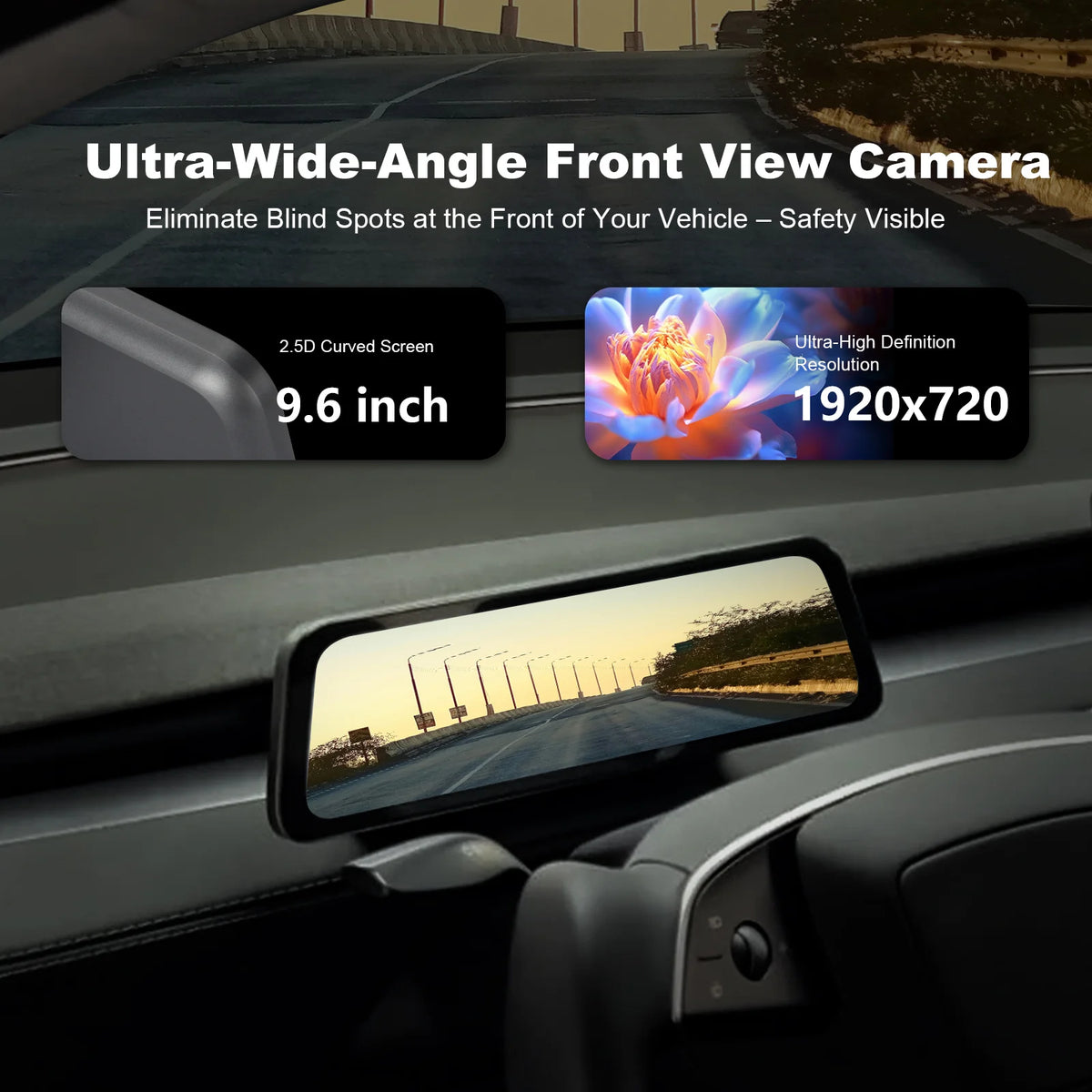

Add a Front Camera. A wide-angle camera shows what sits directly ahead of the front bumper, so you can position the car without leaving the driver's seat.
III. Compatibility
Select the variant that matches your model, model year, and hand drive.
| Model | Model year | Hand drive |
| Model 3 | 2017-2020 | LHD or RHD (separate units) |
| Model 3 | 2021-2023 | LHD or RHD (separate units) |
| Model Y | 2020-2024 | LHD or RHD (separate units) |
| Model 3 (Highland) | 2024+ | One unit fits both |
| Model Y (Juniper) | 2025+ | One unit fits both |
Left-hand drive and right-hand drive are different units on Model 3 2017-2023 and Model Y 2020-2024. Check the hand drive of your car before ordering. If your vehicle is not listed above, contact us before purchase.
IV. Specifications
| Brand | Grundig |
| Product | Digital Instrument Cluster |
| Display Size | 9.66 in |
| Resolution | 1920 × 720 IPS |
| Brightness | Up to 3000 nits |
| Colors | 16.7 million |
| Glass | Laminated · 2.5D edge treatment |
| Control | Touchscreen · gesture control |
| Connection | Plug-and-play harness |
| Phone Mirroring | Wireless CarPlay · Android Auto · CarLife · HiCar |
| Voice Assistant | Siri and Google Assistant through CarPlay / Android Auto |
| Front Camera | Optional · select when ordering |

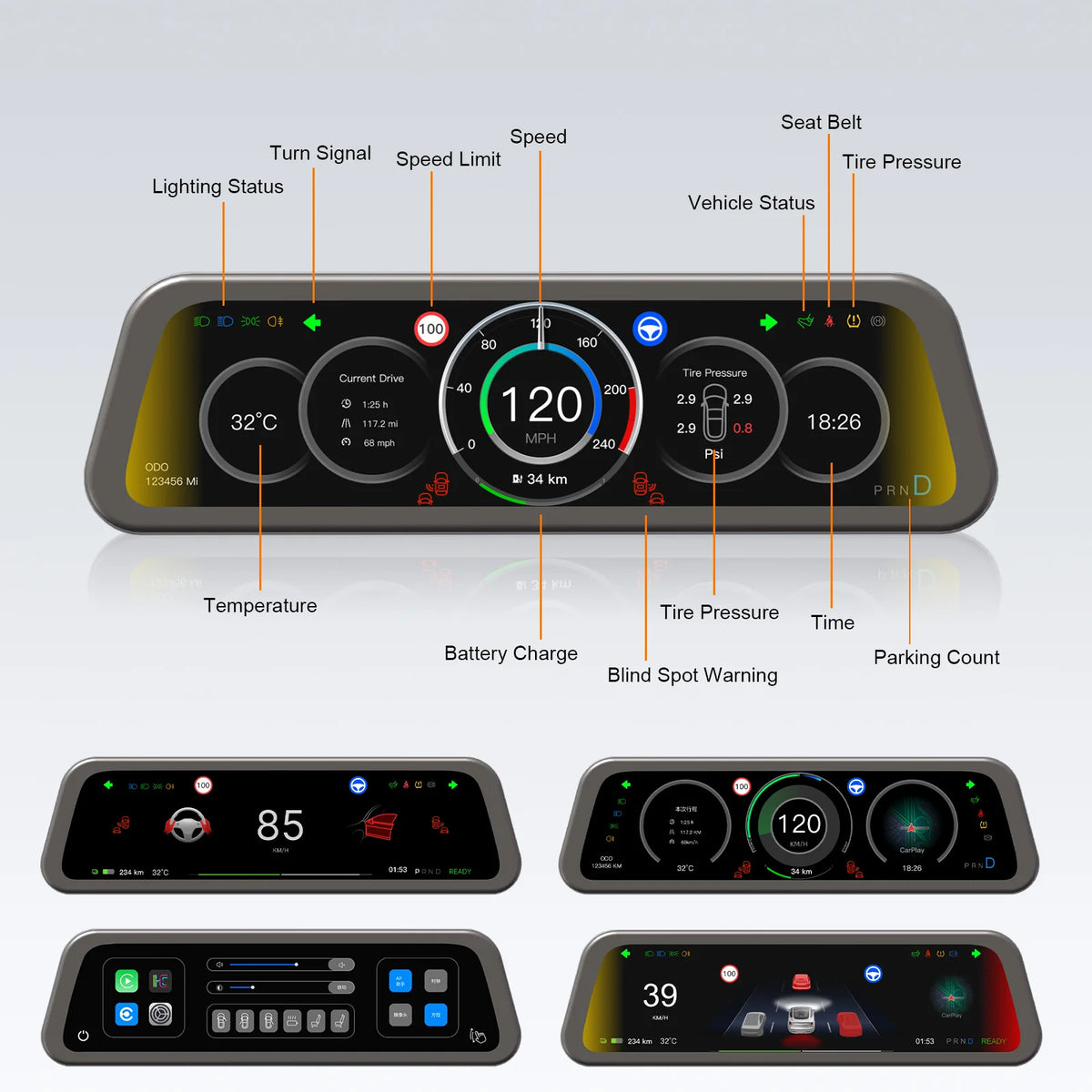

| On-Screen Data | Speed · battery level · tire pressure · temperature · turn signals · lights · seatbelt · speed limit · blind spot alert · parking status · time |
| Themes | 5 UI themes |

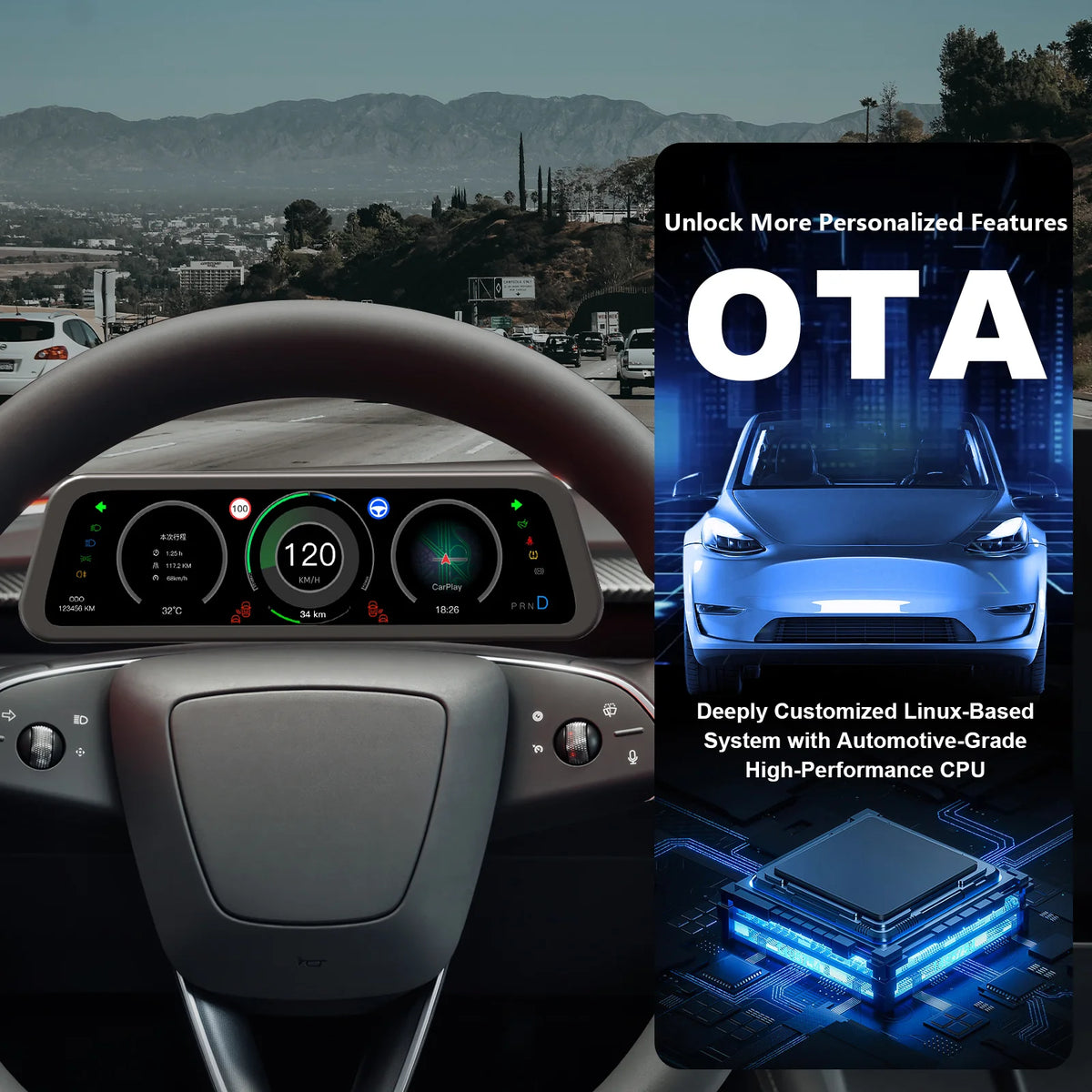

| Operating System | Linux-based automotive system · OTA updates |
| Operating Temperature | -30 °C to 85 °C (-22 °F to 185 °F) |
| Ingress Protection | IP67 dust and water protection |
| Installation | Plug-in to factory connector · about 30 minutes |
| Package Dimensions | 30 × 12 × 11 cm (11.8 × 4.7 × 4.3 in) |
| Package Weight | 1.15 kg (2.5 lb) |
V. Important Notes
- The cluster connects directly to the factory connector, with no wiring modifications needed. Installation takes about 30 minutes.
- Compare your model, model year, and hand drive with Section III before ordering. If your vehicle is not listed, contact us first.
- After installation, confirm the cluster shows speed, battery level, and turn signals, and that the touch layer responds, before you drive.
- The optional front camera shows the area ahead of the front bumper only. It is not a replacement for your mirrors or for the car's own driver-assist systems.
- Clean the screen with a soft, dry cloth. Alcohol and ammonia-based cleaners can damage the anti-glare coating.
